Survey & Engineering
- Site survey and requirements assessment
- Complete ICT infrastructure design
- Security-system design
- Network and fiber-backbone architecture
- Wireless and CCTV coverage planning
- Access-control planning
FEATURED PROJECT | SAUDI ARABIA

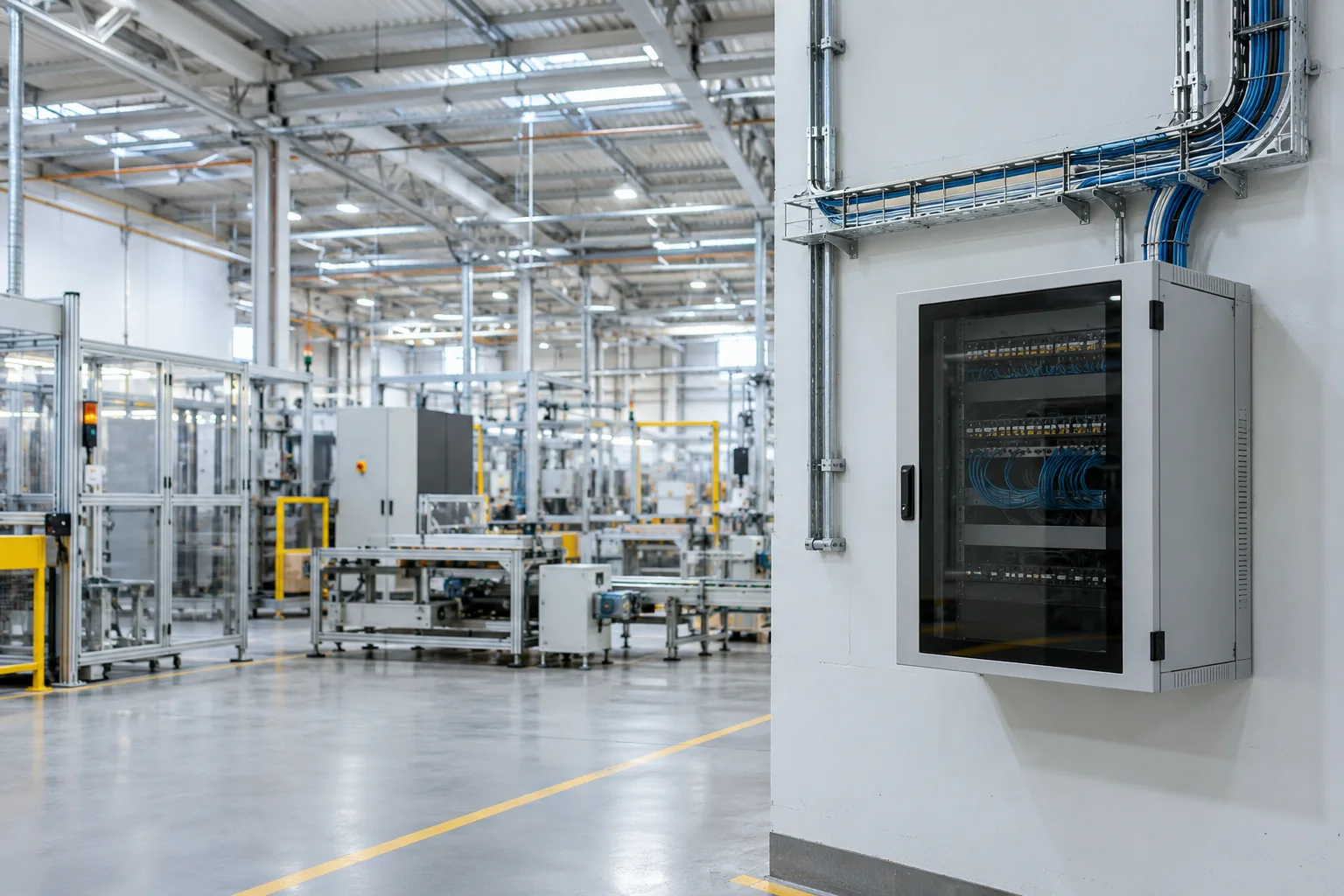

Plastic Manufacturing Facility – Sudair Industrial City
End-to-End ICT, Network, Security & Low-Voltage Infrastructure
Future Bridges Technologies delivered the complete technology infrastructure for a major plastic manufacturing facility in Sudair Industrial City, from initial site survey and engineering through supply, installation, configuration, integration, testing, commissioning, IT-team training and final handover.
Sudair Industrial City, Riyadh Region, Saudi Arabia2022–2024
- Cat6A Shielded Cabling Runs
- 400+
- CCTV Cameras
- 137
- Access-Controlled Doors
- 28
- Cisco Wi-Fi Access Points
- 21
- Cisco IP Phones
- 56
- Honeywell PA Speakers
- 26
DESIGNER / SYSTEMS INTEGRATOR / DELIVERY PARTNER
Complete Technology Infrastructure From Design to Commissioning
A direct Future Bridges Technologies project, delivered across the complete lifecycle.
Future Bridges was engaged to design and deliver the technology infrastructure supporting a major manufacturing facility in Sudair Industrial City. The scope connected corporate offices, VIP and guest areas, production spaces, warehouses and logistics areas, entrance gates, security areas and supporting operational facilities.
Enterprise networking, structured cabling, fiber optics, wireless, network security, CCTV, access control, IP telephony, public address, AV, servers and centralized management formed one engineered environment.
Future Bridges retained responsibility from technical survey and design through equipment selection, procurement, supply, installation, configuration, integration, testing, commissioning, client training and final documentation.
Technology delivery in Saudi Arabia
- 14 Honeywell NetAXS-123 controllers
- 2 Cisco Catalyst C9500 core switches
- Approximately 15 Cisco network switches
- 12 segmented VLANs
- 4 enterprise video recording units
- Cisco enterprise wireless controller
- Cisco voice gateway
- Fortinet enterprise firewall
- Multimode and single-mode fiber backbone
COMPLETE PROJECT RESPONSIBILITY
End-to-End Project Scope
From the first site survey to an operationally ready environment and a documented handover.
Engineering Documentation
- Shop drawings and as-built drawings
- Network topology and fiber diagrams
- Rack elevations and cable schedules
- CCTV layouts and field-of-view planning
- Access-control door schedules
- Wi-Fi access-point layouts
Network Engineering
- IP addressing plan
- VLAN architecture and network segmentation
- Routing design
- Network-security architecture
- Remote-access architecture and VPN design
- SD-WAN configuration
Procurement & Delivery
- BOQ/BOM preparation
- Equipment selection
- Procurement and equipment supply
- Material coordination
- Installation management
Installation & Integration
- Structured cabling and fiber optics
- MDF/IDF infrastructure and network equipment
- Wireless, CCTV and access control
- Voice, public address and audio-visual
- Servers and security infrastructure
Commissioning & Handover
- Configuration, programming and integration
- Testing and commissioning
- Testing reports
- IT-team training
- O&M manuals and final documentation
- Final project handover
THE PHYSICAL FOUNDATION
Structured Cabling & Fiber Backbone

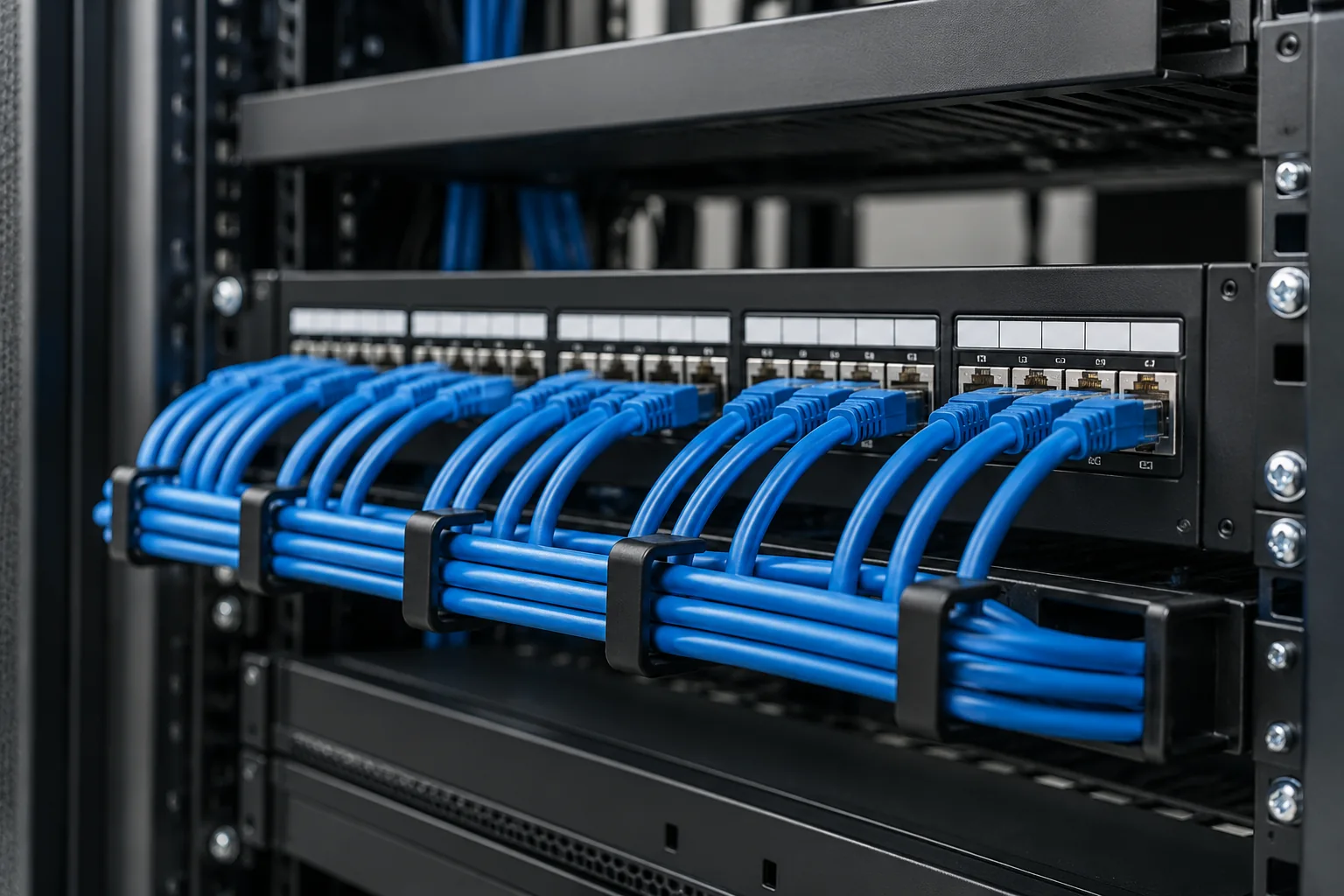

Future Bridges designed and deployed the structured cabling and fiber-optic infrastructure connecting corporate IT, wireless, security, voice, operational and building technology systems. More than 400 Cat6A shielded runs were terminated, identified, labelled, tested and documented. CommScope multimode fiber connected the MDF and IDFs, with single-mode fiber supporting additional backbone and longer-distance requirements.
- 400+ Cat6A shielded runs
- Panduit structured cabling infrastructure
- CommScope fiber-optic infrastructure
- MDF-to-IDF multimode backbone
- Single-mode fiber connectivity
- Network racks and cabinets
- Patch panels and cable management
- Identification, labelling, testing and documentation
MDF / IDF / CORE

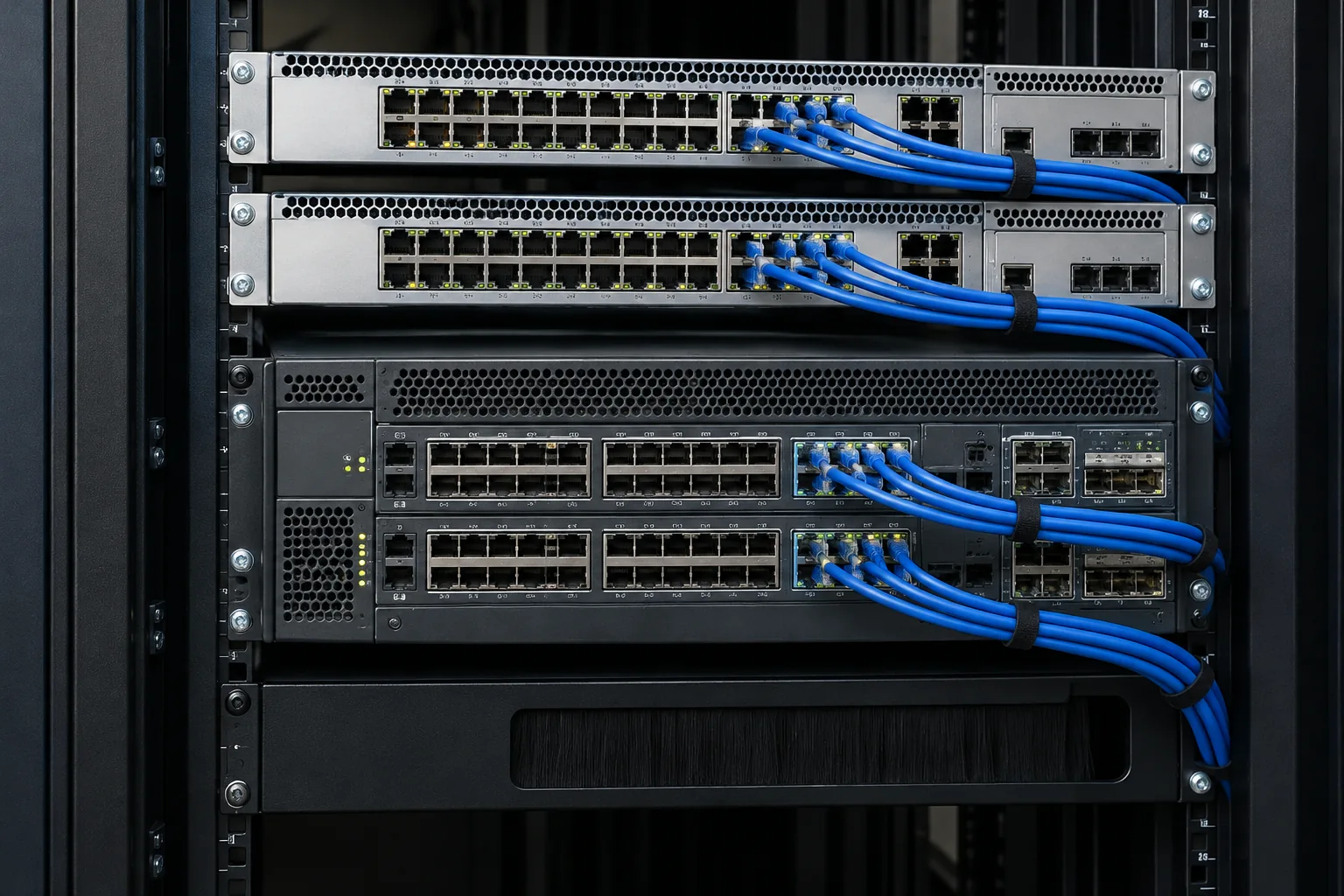

Enterprise Network Infrastructure

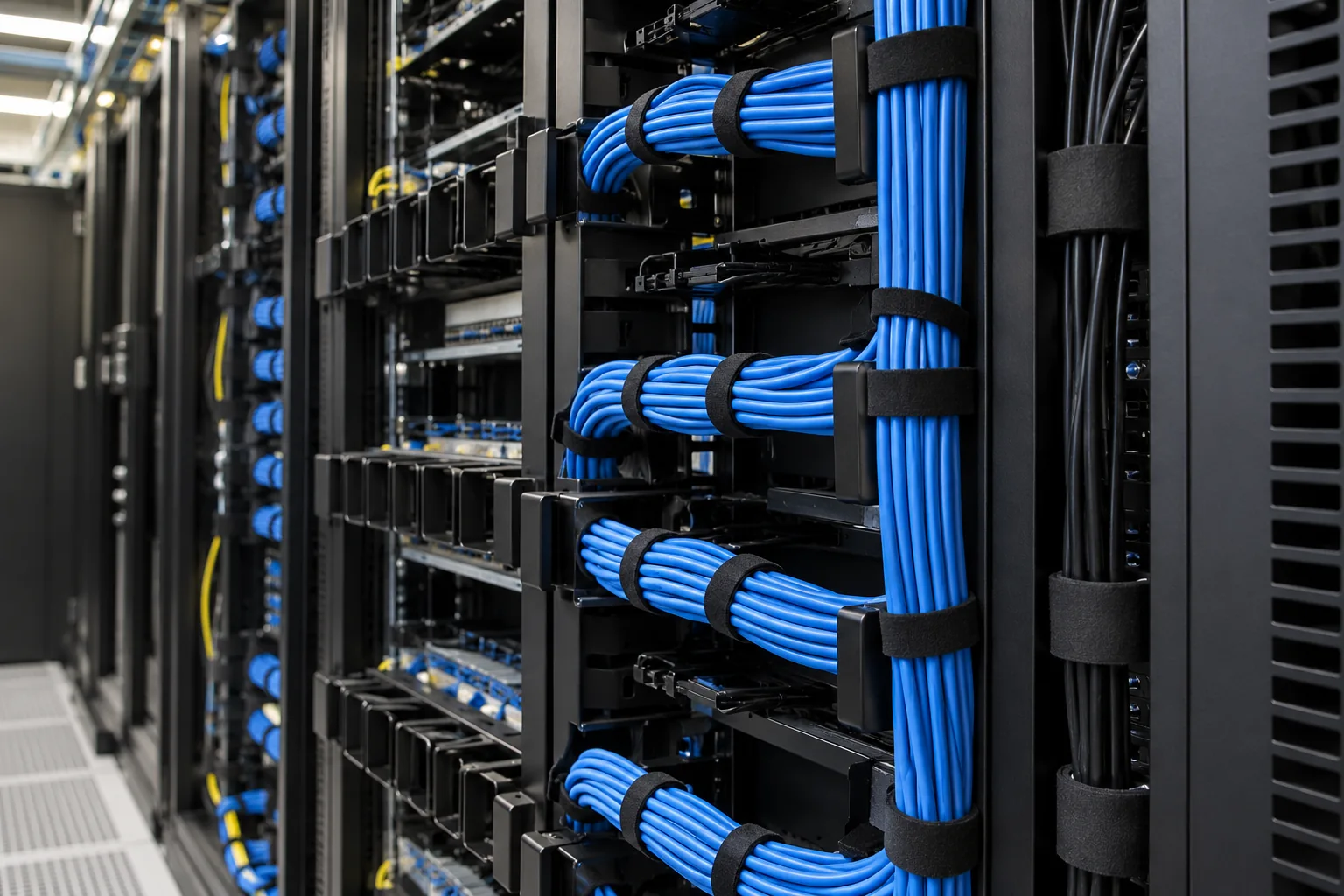

Future Bridges designed, supplied, installed and configured the enterprise network serving the facility’s business, manufacturing, wireless, security, voice and operational requirements. Redundant Cisco core switching connected enterprise access switching, wireless infrastructure, servers, firewall services and segmented networks.
- 2 Cisco Catalyst C9500 Series core switches
- Approximately 15 Cisco switches across the infrastructure
- Cisco enterprise access switching
- Cisco wireless controller and 21 access points
- Cisco voice gateway
- Dell server infrastructure
- Fortinet enterprise firewall
- Legrand UPS infrastructure
- MDF and IDF racks
- Centralized network management
ADVANCED NETWORK ENGINEERING
Segmented, Secure & Remotely Managed Network Architecture
Future Bridges configured the core and access network, routing, security policies and remote connectivity—not just the installed equipment.
- Core and access switching configuration
- Routing and network segmentation
- 12 dedicated VLANs
- SD-WAN and VPN connectivity
- Firewall policies
- Wireless segmentation
- Server connectivity
- Security-system networks
- Voice, CCTV and access-control networks
- Public-address and management networks
- Corporate and staff Wi-Fi
- VIP and guest Wi-Fi
Central visibility.
Defined system boundaries.
The network architecture enabled secure remote monitoring and management of the Sudair facility from the client’s Riyadh head office. Corporate, security, voice, wireless and operational services retained appropriate separation.
Network infrastructure in Riyadh
WIRELESS CONNECTIVITY
Enterprise Cisco Wireless Infrastructure

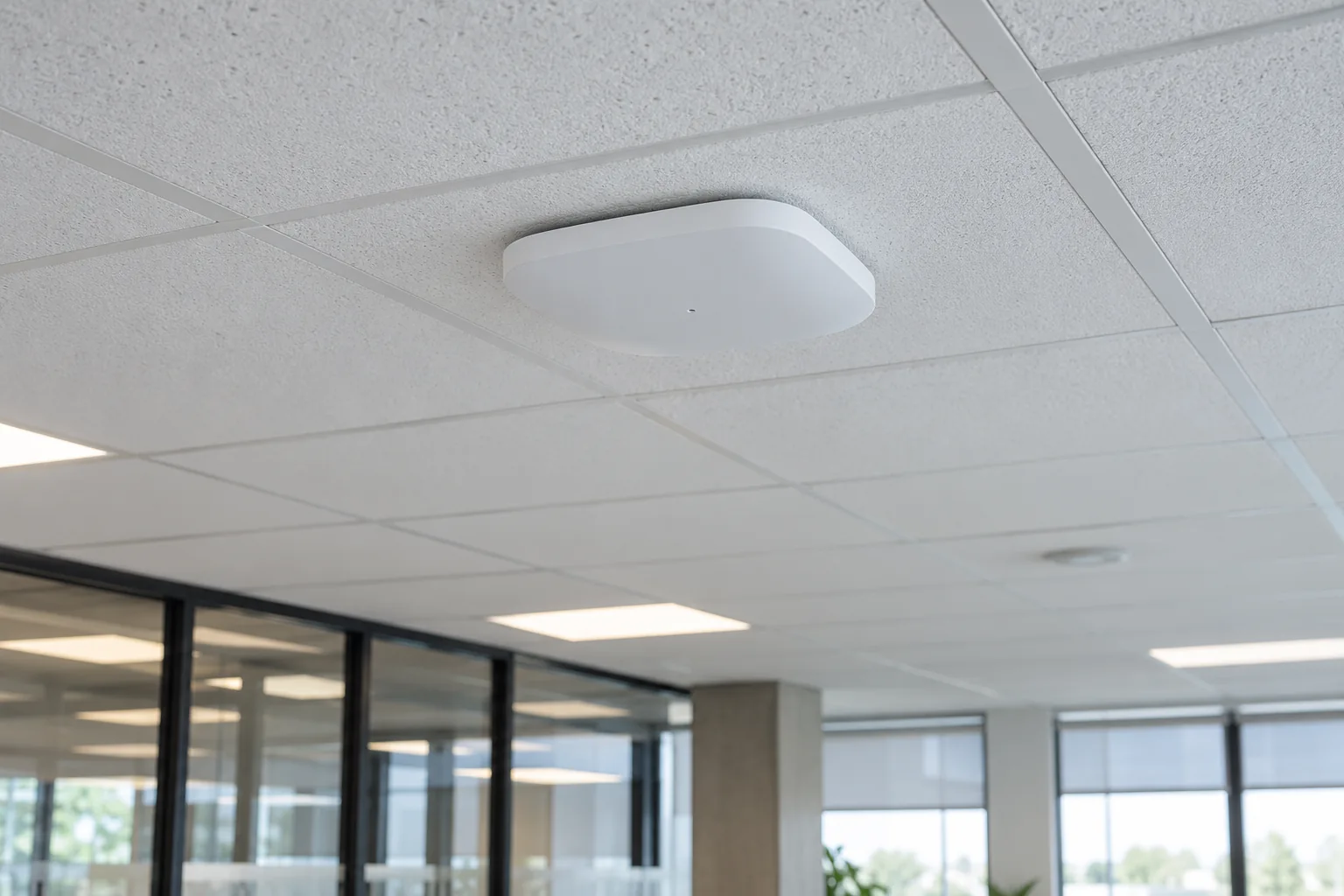

A Cisco enterprise wireless environment used 21 access points positioned according to operational requirements and coverage planning. Corporate, staff, VIP and guest wireless services were segmented for their respective users and operating needs.
- 21 Cisco Wi-Fi access points
- Cisco enterprise wireless controller
- Corporate, staff, VIP and guest wireless
- VLAN segmentation and security policies
- Coverage planning
- Configuration and commissioning
VIDEO SURVEILLANCE
137-Camera CCTV Surveillance System

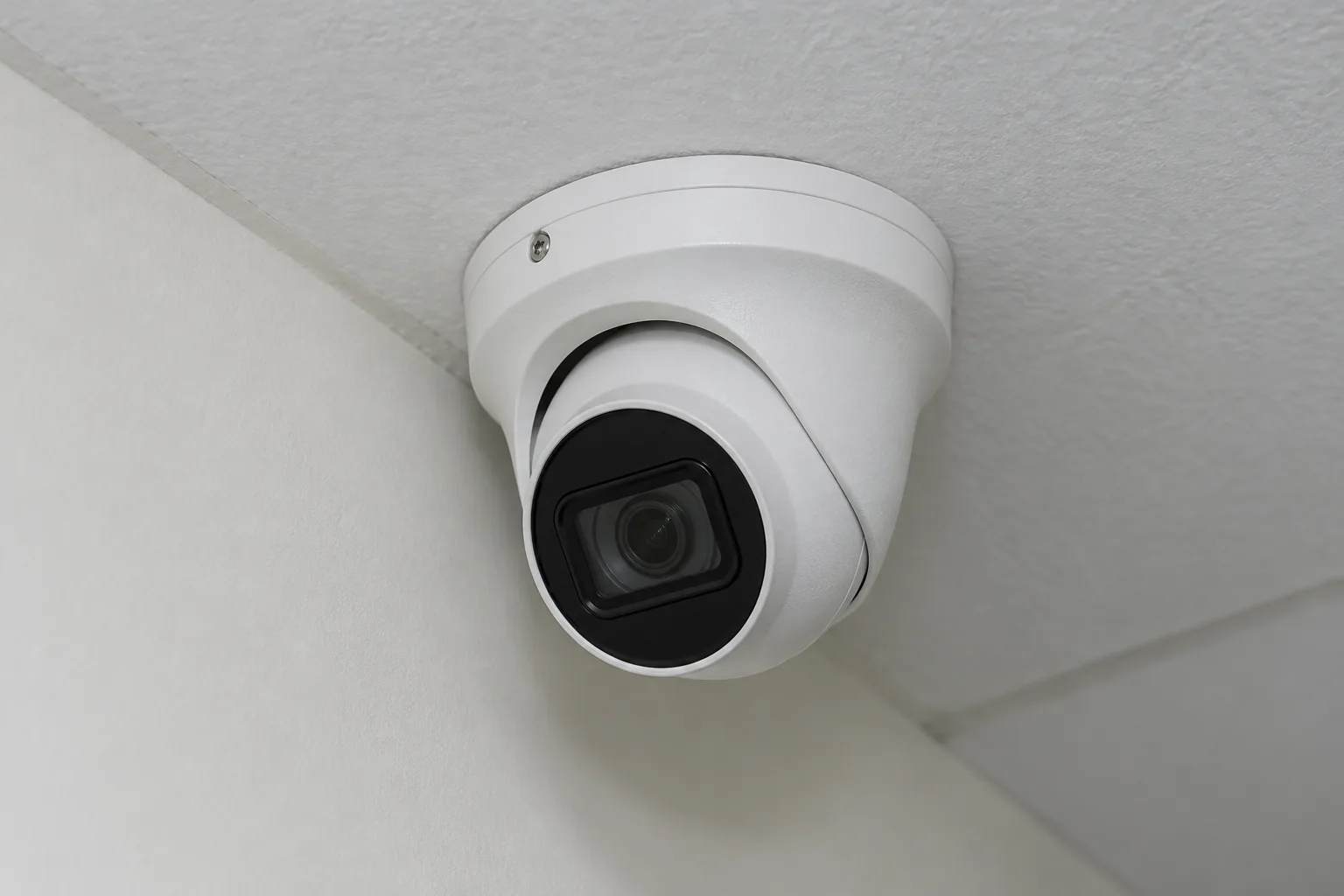

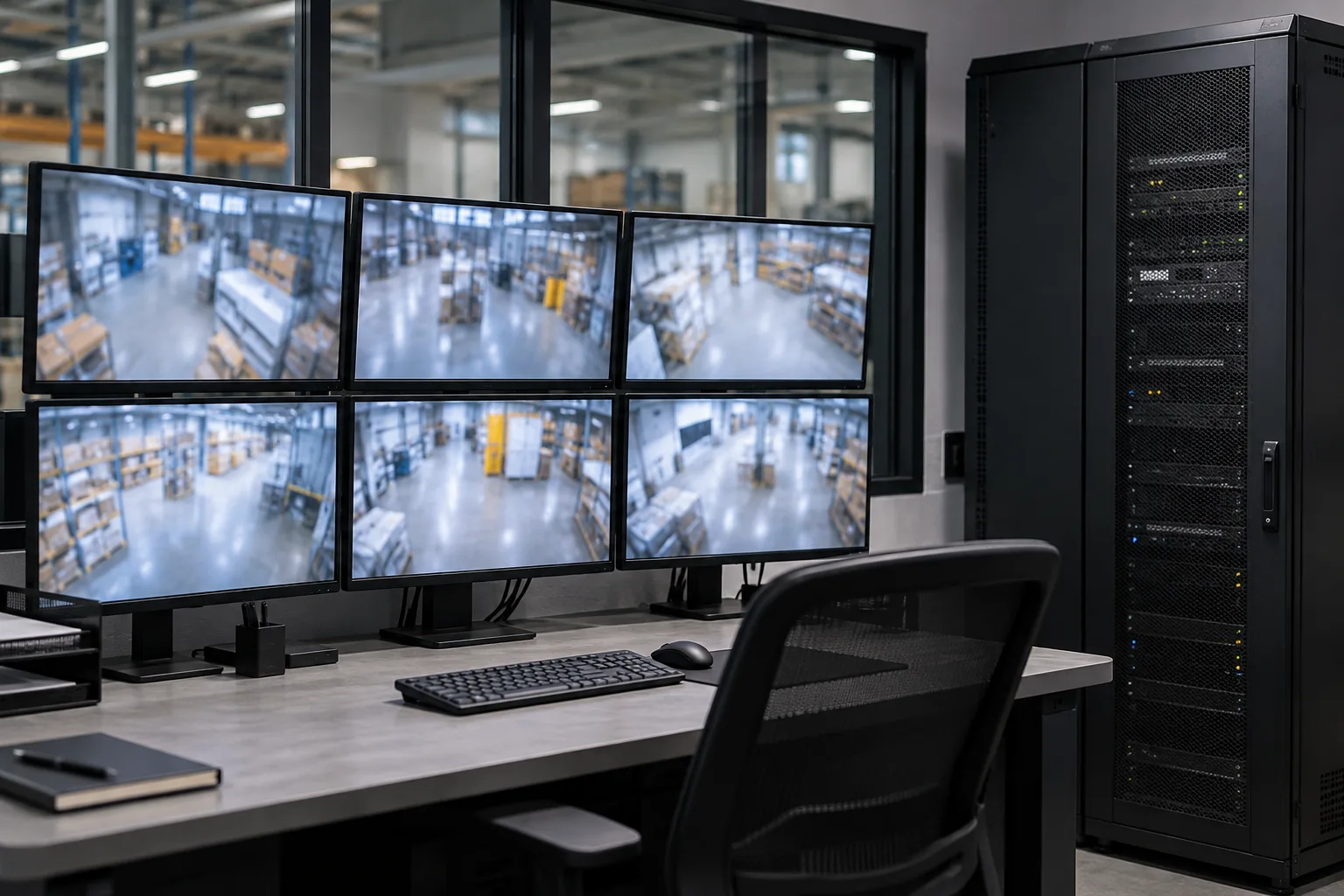

Future Bridges designed, supplied, installed, configured and commissioned a Honeywell-based CCTV platform. Its 137 cameras covered production, manufacturing, warehouses, administrative and VIP areas, entrances and exits, loading areas, outdoor spaces, perimeter, logistics and guard areas.
- 137 CCTV cameras
- Centralized video management
- 4 enterprise recording units
- Enterprise video-storage infrastructure
- Camera network configuration
- System programming
- Camera verification, testing and commissioning
CONTROLLED ENTRANCES
Enterprise Access Control Infrastructure

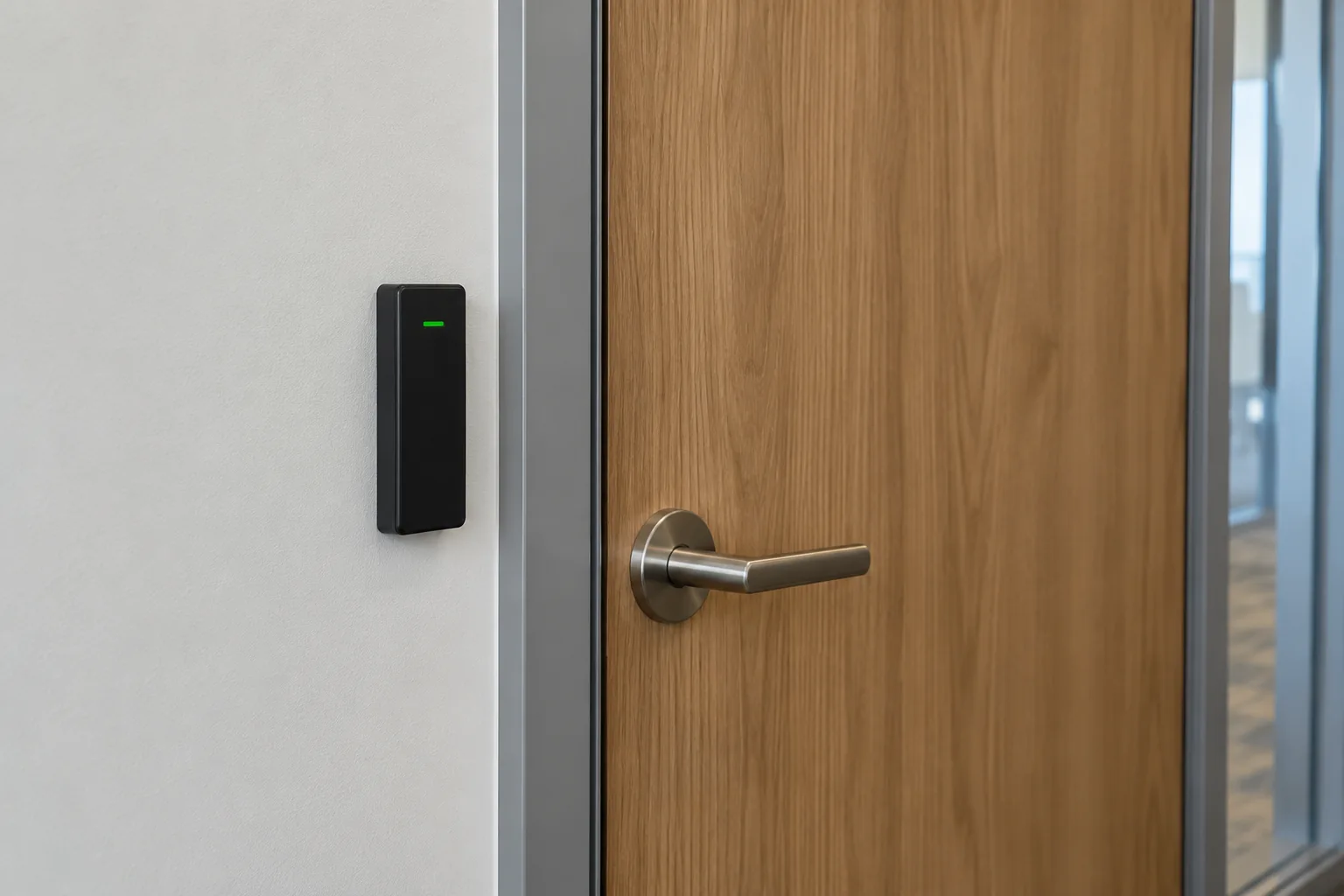

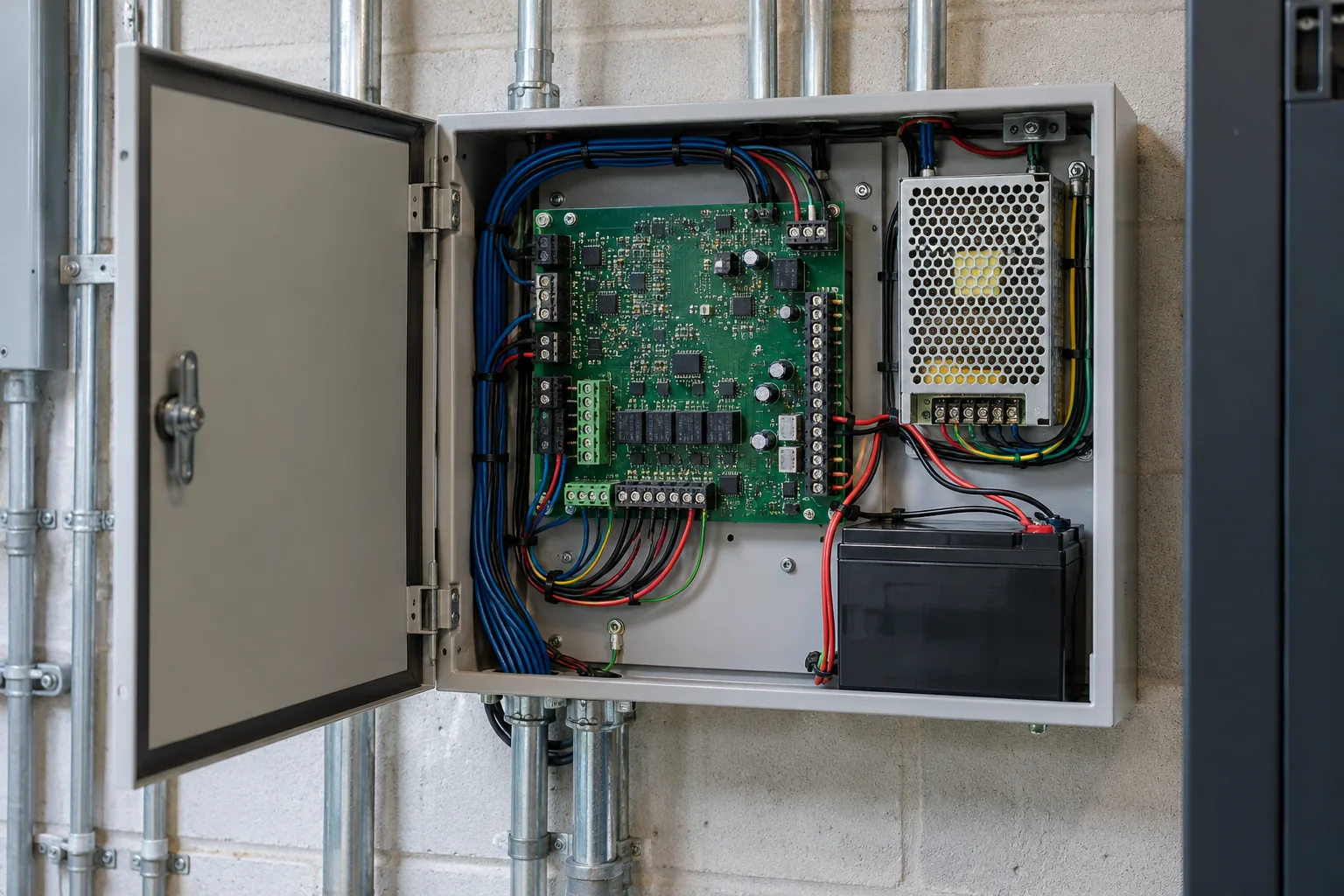

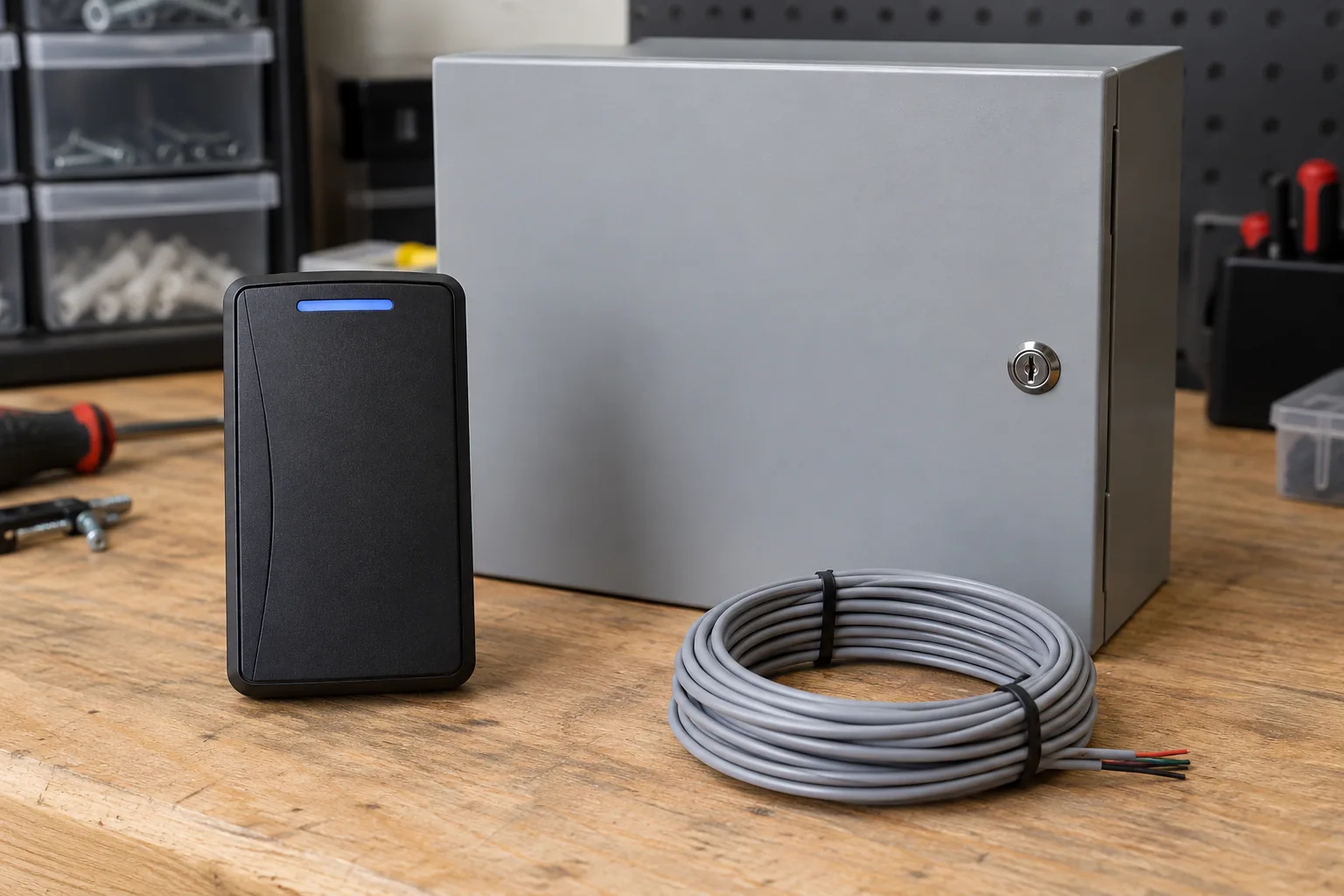

A Honeywell access-control platform served 28 controlled doors using 14 Honeywell NetAXS-123 controllers. Future Bridges coordinated door interfaces, permissions, controller programming and centralized management with the networked infrastructure.
- 28 access-controlled doors
- 14 Honeywell NetAXS-123 controllers
- Card readers and electronic locking interfaces
- Door monitoring, contacts and request-to-exit interfaces
- Access permissions and controller programming
- Network integration and centralized management
- Testing and commissioning
FACILITY ENTRANCES
Vehicle Access & ANPR
Future Bridges also implemented vehicle-access and automatic number-plate recognition infrastructure at designated facility entrance and security locations.
- Vehicle-access infrastructure
- ANPR technology and entrance monitoring
- Security integration
- Configuration, testing and commissioning
BUSINESS COMMUNICATIONS
Cisco IP Telephony

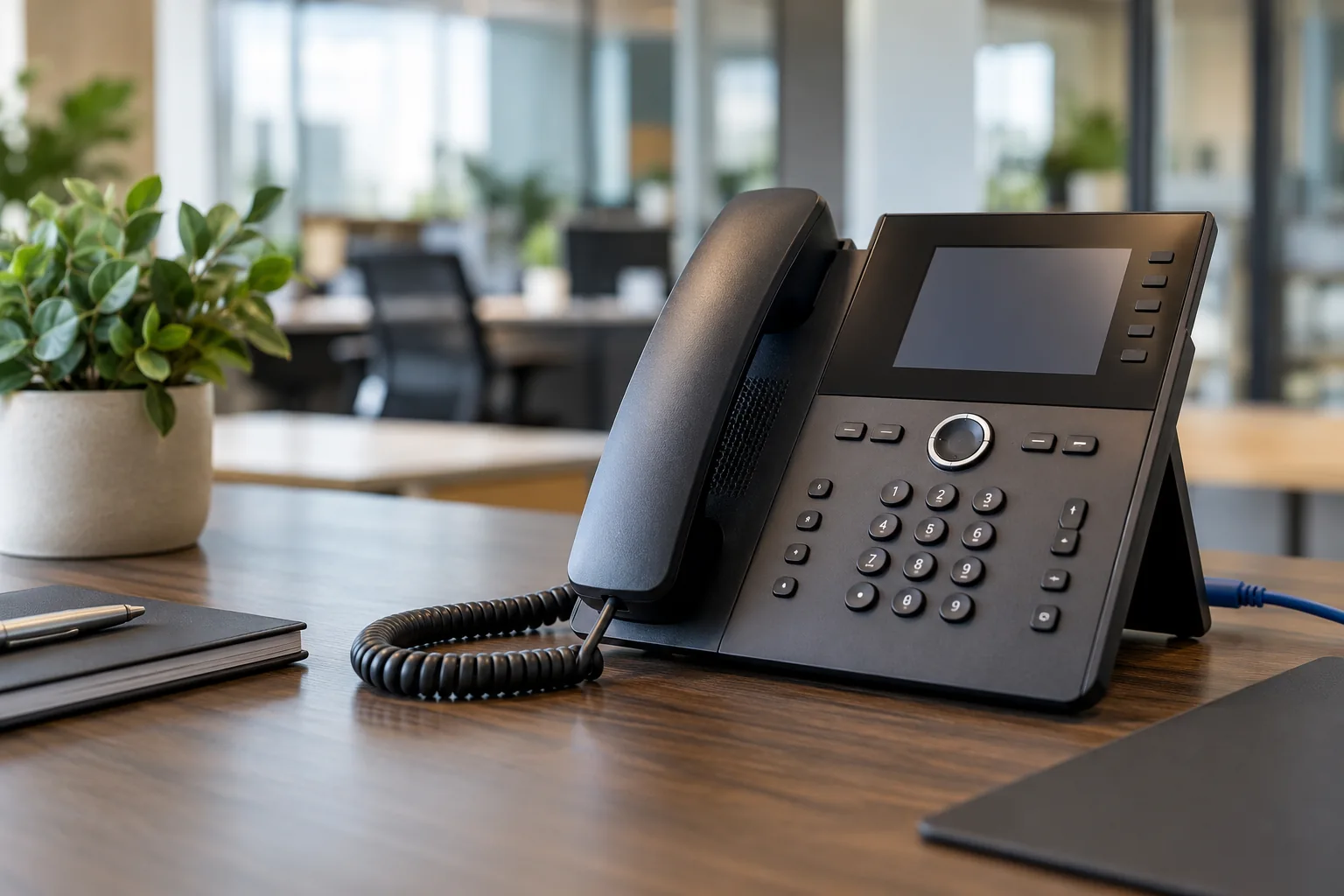

The communications deployment supported approximately 56 Cisco IP phones throughout the facility. Future Bridges supplied, installed, configured and commissioned the voice gateway, switching, voice VLAN and endpoint connectivity.
- 56 Cisco IP phones
- Cisco voice gateway
- Voice VLAN
- Network and endpoint configuration
- Testing and commissioning
OPERATIONAL ANNOUNCEMENTS
Honeywell Public Address System

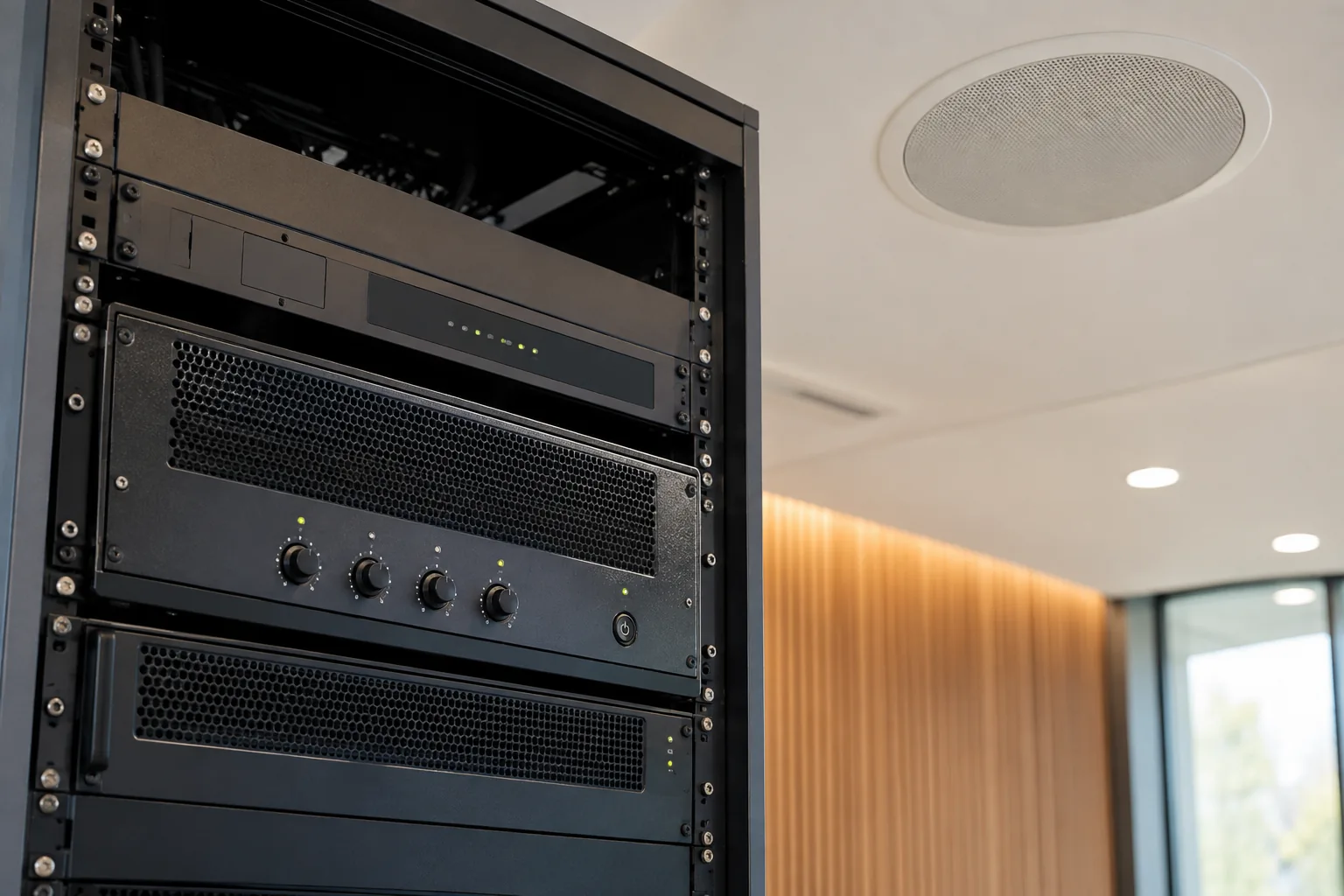

Future Bridges supplied, installed, configured and commissioned a Honeywell public-address system for operational communication and announcements across designated facility areas.
- 26 Honeywell PA speakers
- 2 Honeywell amplifiers
- 1 multimedia player
- Reception announcement microphone
- Associated cabling
- Equipment configuration and programming
- Testing and commissioning
EXECUTIVE / VIP / MEETING

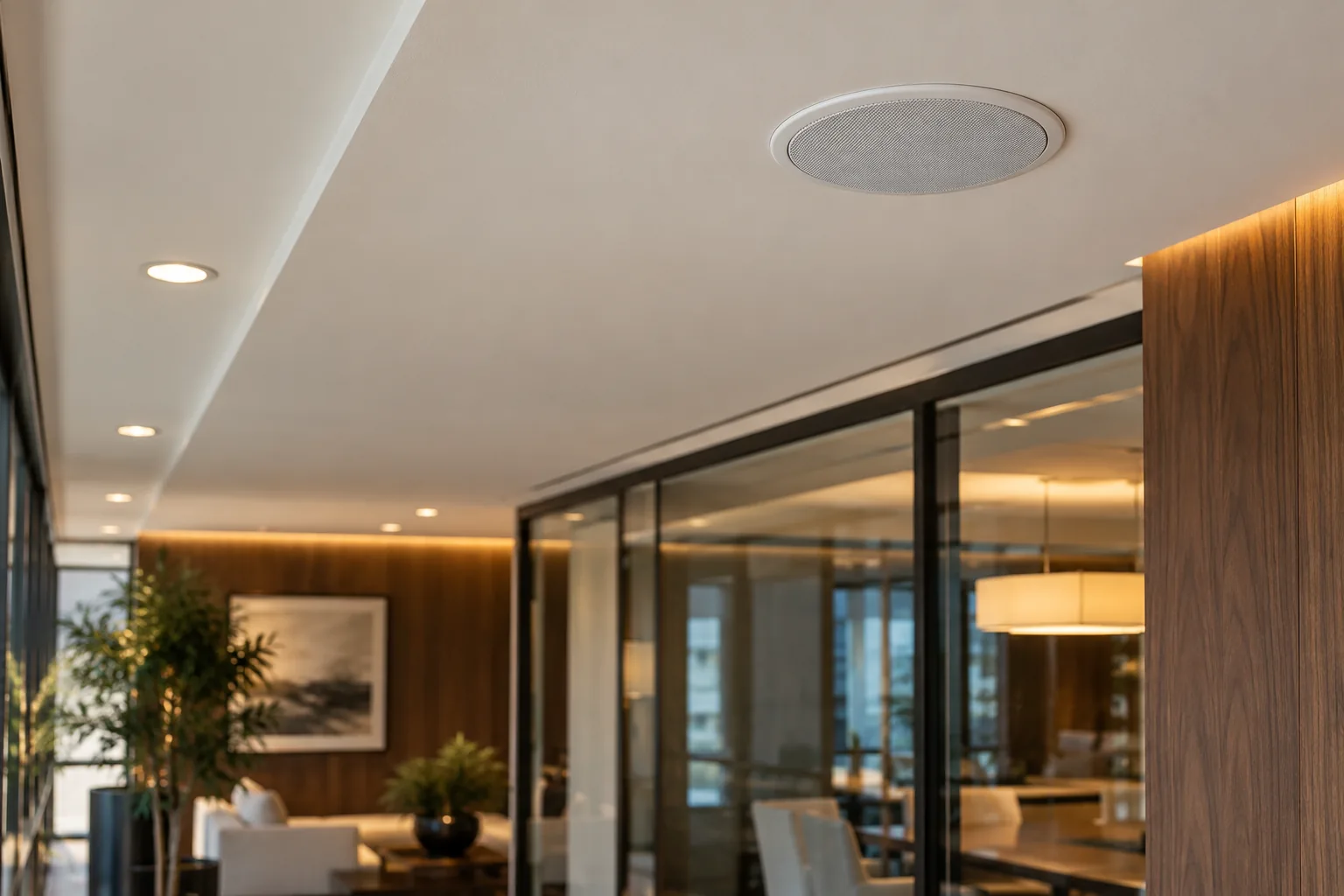

Corporate & VIP Audio-Visual Systems

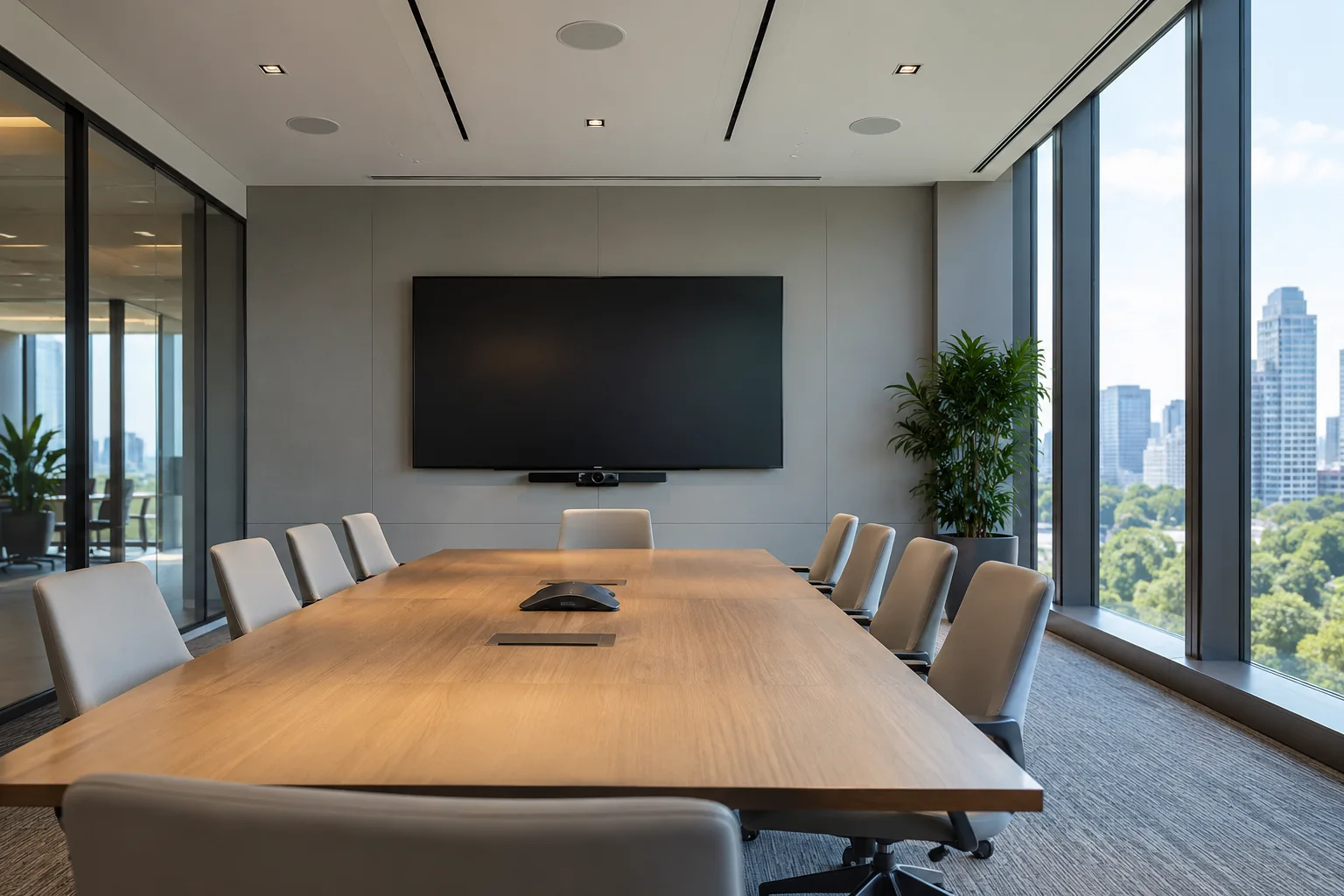

Selected audio-visual infrastructure served executive, VIP and meeting environments, connecting room equipment, displays and audio through a coordinated installation and commissioning scope.
- Bose music/audio system in VIP areas
- Meeting-room AV infrastructure
- Sony TVs and displays
- AV cabling and equipment installation
- Configuration, testing and commissioning
SERVER / VIRTUALIZATION / POWER
Server & Critical IT Infrastructure

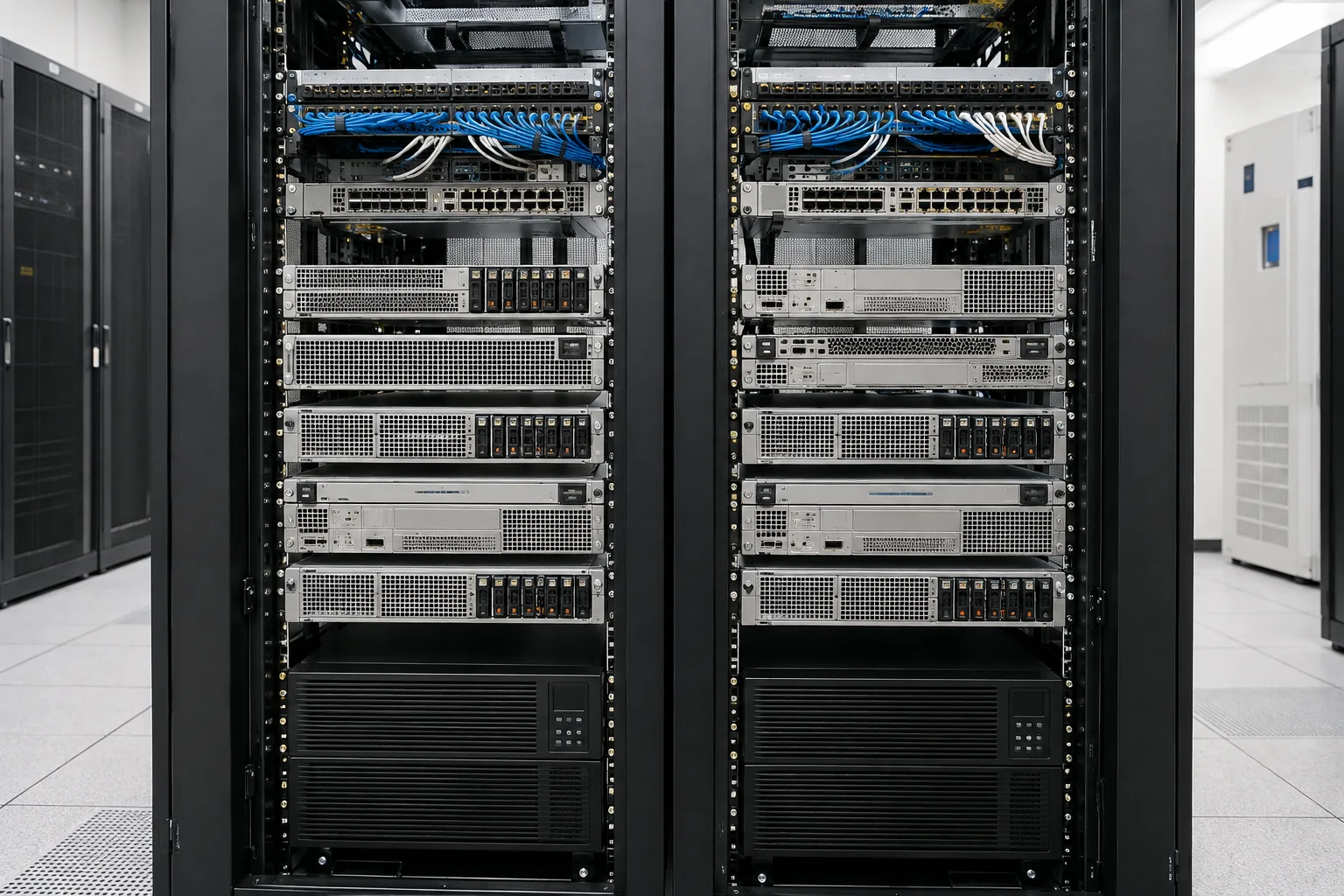

Dell server infrastructure and a VMware environment supported the facility’s centralized IT and security-system functions. Future Bridges organized the server, recording and access-control environment with network racks and power protection.
- Dell server infrastructure
- VMware environment
- Security-system server functions
- CCTV server and recording environment
- Access-control infrastructure
- Legrand 3 kVA UPS systems
- Network racks and equipment organization
- Power protection and centralized management
SYSTEMS INTEGRATION
Multiple Technology Systems. One Integrated Environment.
A coordinated operational architecture joined infrastructure and devices with the policies, interfaces and management needed to operate them.
Riyadh head officeSecure monitoring and management
Enterprise network & fiber backbone
Routing · 12 VLANs · Firewall policies · VPN · SD-WAN
- Corporate IT & servers
- Wireless connectivity
- CCTV & recording
- Access control & ANPR
- IP telephony
- Public address & AV
Configured together. Segmented by function. Tested as an operating environment.
Future Bridges integrated networking, structured cabling, fiber optics, wireless, network security, CCTV, access control, vehicle access, voice, public address, AV and servers. Segmentation, routing, security policies, VPN connectivity and remote management supported secure administration across the connected systems.
QUALITY ASSURANCE
Testing, Commissioning & Quality Assurance
Project responsibility continued through final commissioning. Acceptance work covered the physical links, configured systems and integrated operating environment.
- Structured cabling and fiber testing
- Network configuration verification
- Core-switch and access-switch testing
- Wireless testing
- Firewall verification and VPN testing
- CCTV testing and camera verification
- Access-control testing
- IP telephony testing
- PA and AV testing
- Server checks
- Integration testing
- Final commissioning reports
OPERATIONAL READINESS
Client IT Team Training
Following commissioning, Future Bridges trained the factory’s IT team to operate and administer the deployed infrastructure.
Training covered the relevant network, wireless, security, monitoring and system-management functions required for day-to-day operation.
- Network administration and monitoring
- Security-system operation
- Wireless administration
- System troubleshooting
- Remote management
- Operational handover
ENGINEERING RECORDS
Complete Engineering Documentation & Handover
A structured final package connected installed equipment, drawings, configuration records, testing evidence and operating guidance. Controlled technical records were handed to the client’s team.
- As-built drawings
- Network topology
- Fiber diagrams
- Rack elevations
- CCTV layouts
- Access-control schedules
- Wi-Fi layouts
- IP/VLAN documentation
- Cable schedules
- Equipment records
- Testing reports
- O&M documentation
- Training records
- Final handover package
EQUIPMENT & TECHNOLOGY
Technology Platforms Deployed
The manufacturers represented in the delivered scope, with each platform’s project role.
Cisco
Core and access switching, wireless, voice gateway and IP telephony
Honeywell
CCTV, access control and public address
Fortinet
Firewall, VPN and network-security infrastructure
CommScope
Fiber-optic backbone
Panduit
Cat6A shielded structured cabling
Dell
Server infrastructure
Legrand
UPS infrastructure
Bose
VIP-area audio
Sony
Displays and AV equipment
2022–2024 / DELIVERY LIFECYCLE
From Survey to Final Handover
- 01
Survey
- 02
Engineering
- 03
Design
- 04
BOQ & Procurement
- 05
Installation
- 06
Configuration & Integration
- 07
Testing
- 08
Commissioning
- 09
Training
- 10
Documentation & Handover
PROJECT GALLERY
Across the Infrastructure
Network, cabling, security, access, communications and the completed installation.

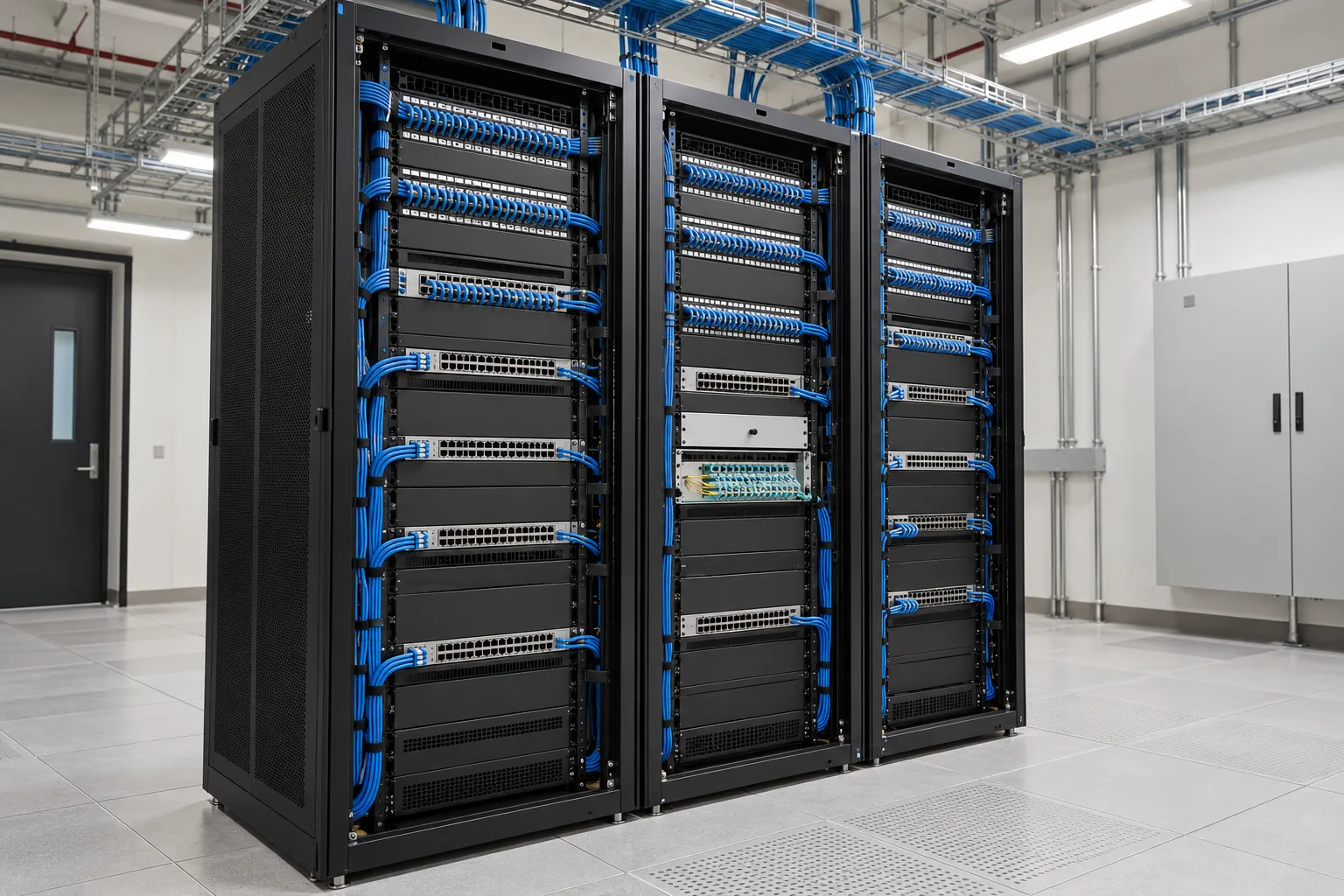

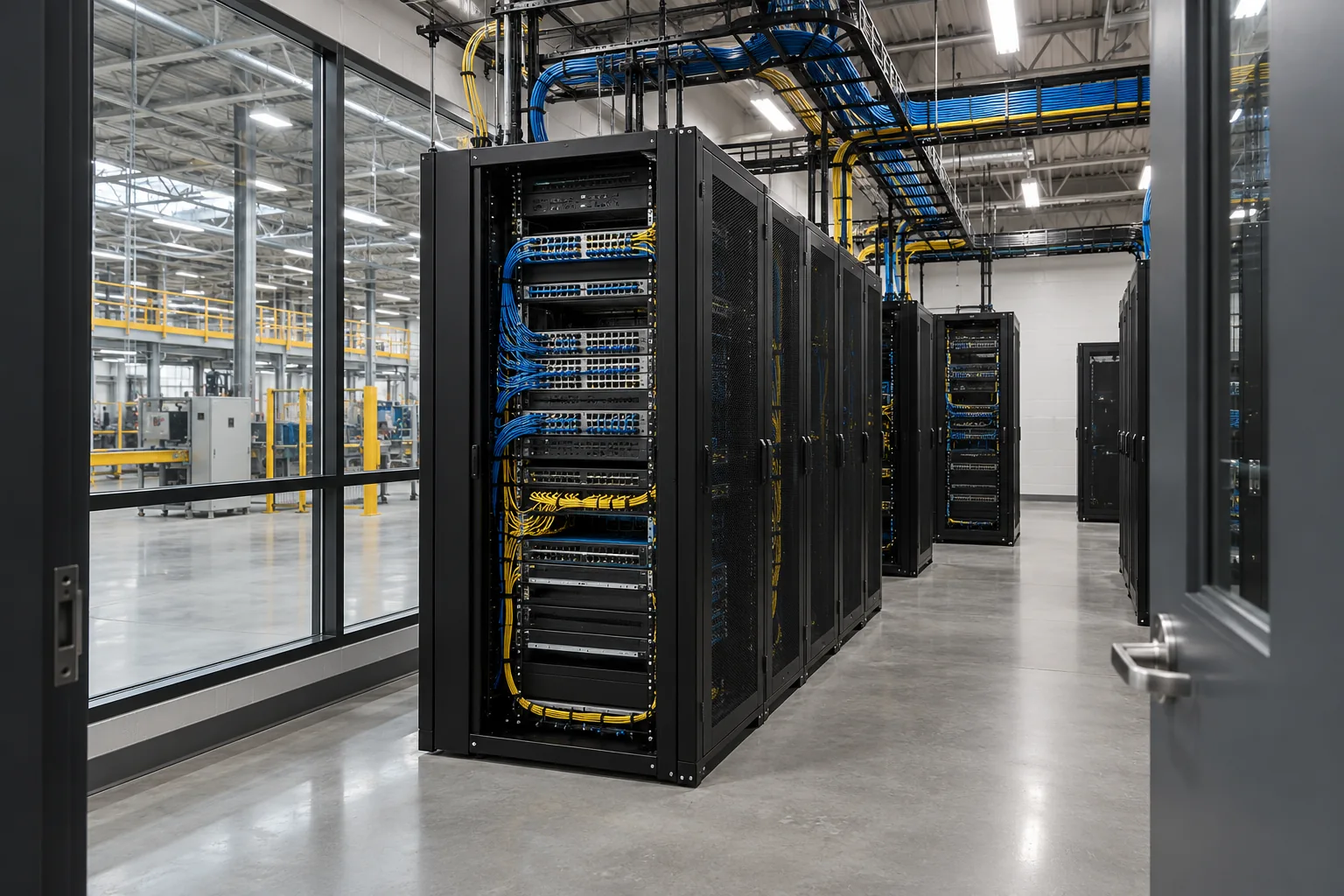

Network & Server Infrastructure

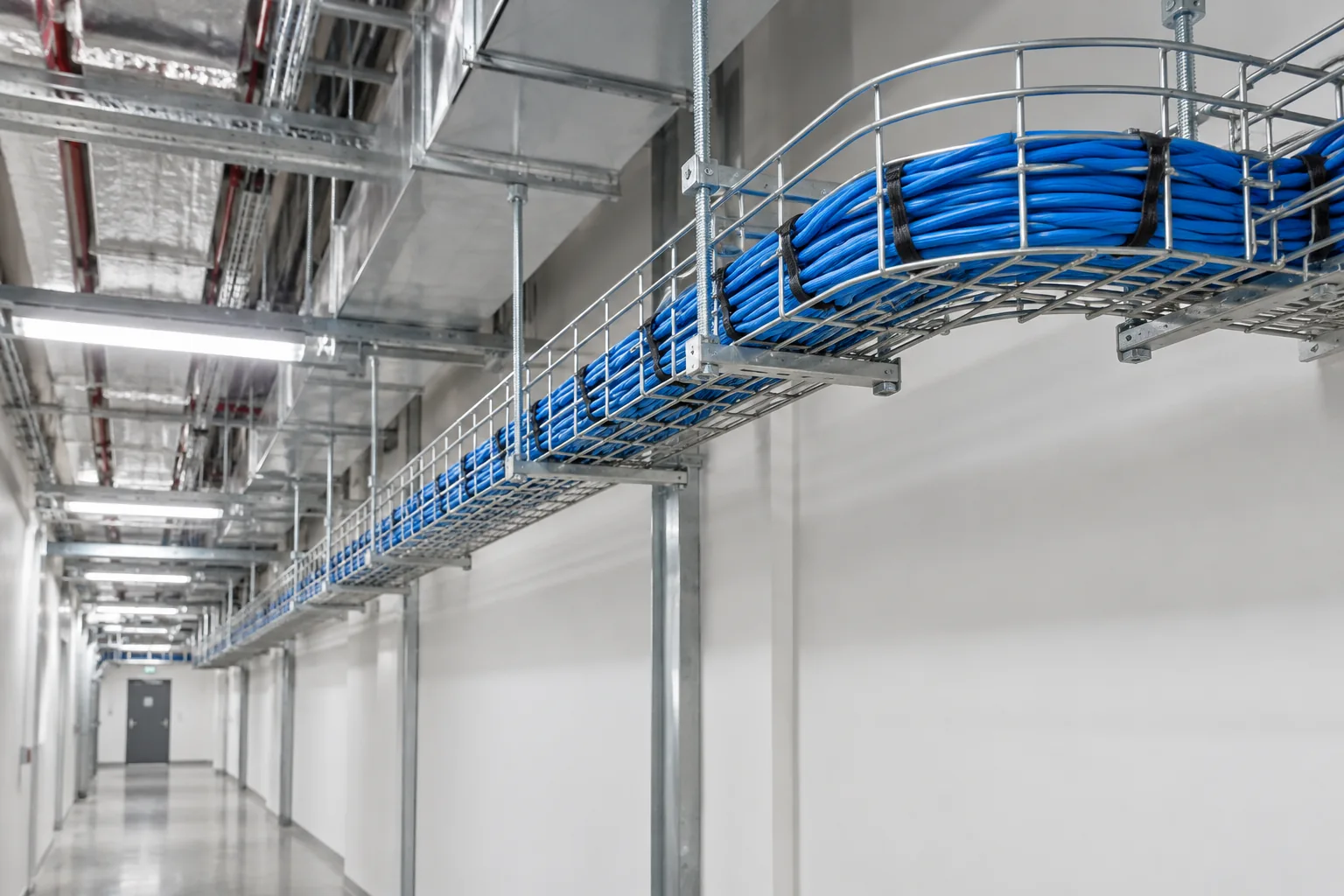

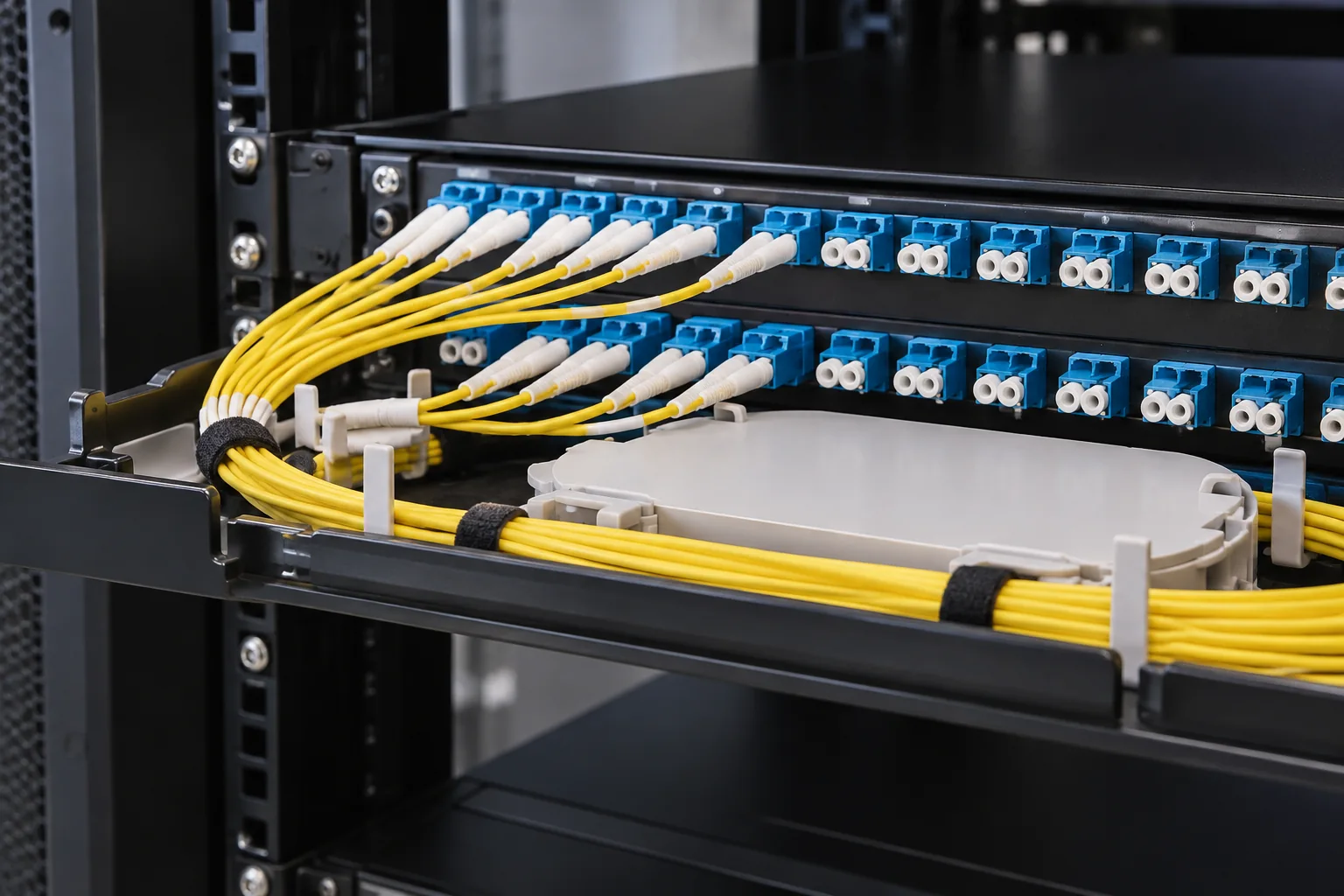

Structured Cabling & Fiber
CCTV & Security
Access Control
PA & AV
Completed Installation
RELATED FUTURE BRIDGES SOLUTIONS
The Capabilities Behind the Project
FUTURE BRIDGES
Planning a Complex Technology Infrastructure Project?
Future Bridges Technologies delivers enterprise networking, structured cabling, fiber optics, security systems, wireless, communications and integrated technology infrastructure from engineering and design through commissioning and handover.
